Features
- OSFP-800 form factor
- 800 Gb/s aggregate data rate
- 8 optical and electrical lanes at 106.25 Gb/s PAM4
- Eight-channel parallel VCSEL transmitters and PIN photodiode receivers with TIAs
- Dual MPO-12/APC optical connector
- 2×VR4 (50 m) optical interface over OM4 multi-mode fiber with host-side KP4 FEC
- Hot pluggable
- Single 3.3 V power supply
- Power consumption: Typical 13 W, Max. 15 W
- Operating case temperature: 0 °C to +70 °C
- Digital diagnostic monitoring support
Description
The WST-OS8-VR4X2-C module is an 800Gb/s OSFP-800 optical transceiver designed for short-reach multimode fiber (MMF) transmission. It provides eight electrical lanes operating
at 106.25 Gb/s PAM4 signaling and supports a 2×VR4 optical interface for transmission distances up to 50 m over OM4 multimode fiber.
The module integrates optical and electrical components within an OSFP-800 form factor and uses dual MPO-12/APC connectors for optical connectivity. The optical transmitters are based on 850 nm VCSEL technology and the receivers use PIN photodiodes, optimized for short-reach multimode fiber applications.

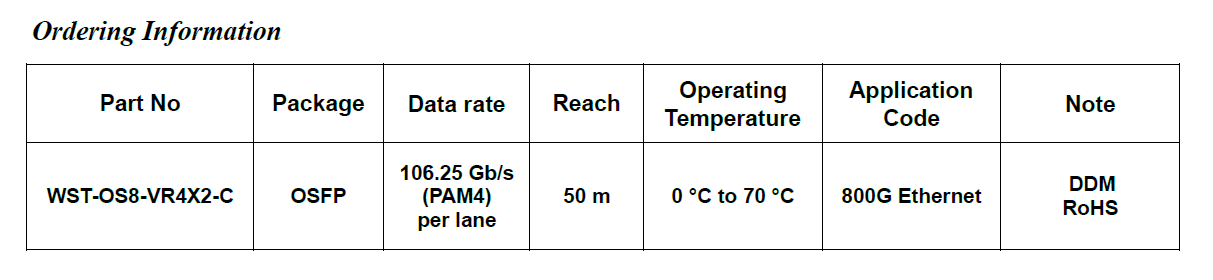

Specification
