Features
- OSFP RHS form factor
- 400Gb/s aggregate data rate
- 4 × 106.25 Gb/s PAM4 optical interface
- 4 × 106.25 Gb/s PAM4 electrical interface
- Four-channel PAM4 SIP Modulator transmitters and receivers
- Single MPO-12/APC optical connector
- 500m optical interface over single-mode fiber
- Hot pluggable
- Single 3.3 V power supply
- Power consumption: 9 W (Max.)
- Operating case temperature: 0 °C to +70 °C
- International class 1 laser safety certified
Description
The module is a hot-pluggable 400G OSFP112 RHS DR4 optical transceiver designed for high-speed data communication
applications. The module supports four duplex channels operating at 106.25 Gb/s PAM4, providing an aggregate data rate
of up to 400 Gb/s and transmission distances of up to 500 meters over single-mode fiber. The transceiver integrates highperformance
silicon photonics (SiPh) modulators and uses an MPO-12 APC optical interface.

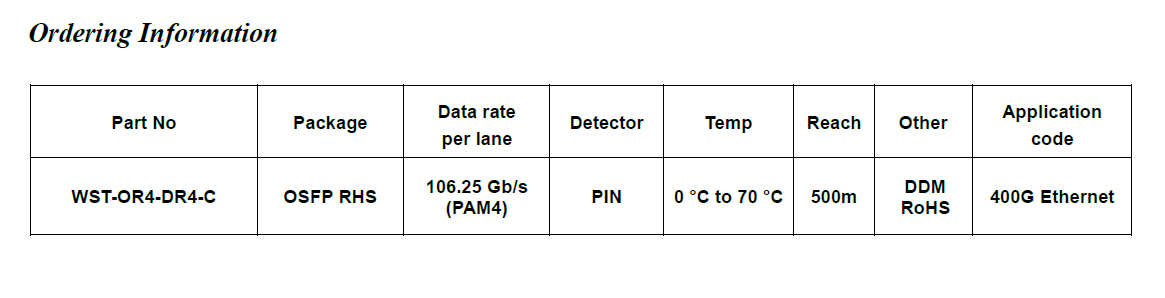

Specification
