Features
- QSFP-DD form factor
- 400 Gb/s aggregate data rate
- 4 optical lanes at 106.25 Gb/s PAM4
- 8 electrical lanes at 53.125 Gb/s PAM4
- 4-lane parallel VCSEL transmitters and PIN photodiode receivers with TIAs
- MPO-12/APC optical connector
- SR4 (100 m) optical interface over OM4 multi-mode fiber with host-side KP4 FEC
- Hot pluggable
- Single 3.3 V power supply
- Power consumption: Max. 10 W
- Operating case temperature: 0 °C to +70 °C
- Digital diagnostic monitoring support
Description
The WST-QD4-SR4-C module is a 400Gb/s QSFP-DD optical transceiver module designed for short-reach multimode
fiber (MMF) transmission. It provides eight electrical lanes operating at 53.125 Gb/s PAM4 signaling and supports a SR4
optical interface for transmission distances up to 100 m over OM4 multimode fiber.
The module integrates optical and electrical components within a QSFP-DD form factor and uses MPO-12/APC connector
for optical connectivity. The transmitters are based on 850 nm VCSEL laser and the receivers use PIN photodiodes with
TIAs, optimized for short-reach multimode fiber applications.

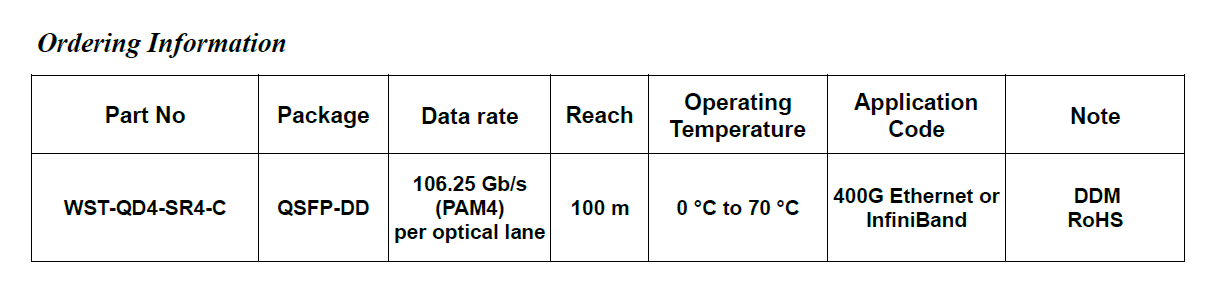

Specification
