Features
- 400G QSFP112 DR4 optical transceiver module
- Supports aggregate data rate up to 425 Gb/s
- Four electrical lanes at 106.25 Gb/s PAM4 per lane
- Four optical lanes at 106.25 Gb/s PAM4 per lane
- 53.125 GBd PAM4 signaling rate
- 1310 nm silicon photonics optical engine
- Transmission distance from 2 m to 500 m over G.652 SMF with FEC
- MPO-12/APC optical interface
- Single +3.3 V power supply
- Maximum power consumption: 10 W
- Digital diagnostic monitoring functions supported
- Operating case temperature: 0 °C to 70 °C
- RoHS compliant
Description
The WST-Q112-DR4-C is a 400G QSFP112 DR4 optical transceiver module designed for medium-reach data
communication and interconnect applications over single-mode fiber. It supports an aggregate data rate of 425 Gb/s and transmission distance from 2 m to 500 m over G.652 SMF with FEC.
The module uses a 1310 nm silicon photonics optical engine and provides a 4-lane optical interface through an MPO-12/APC connector.

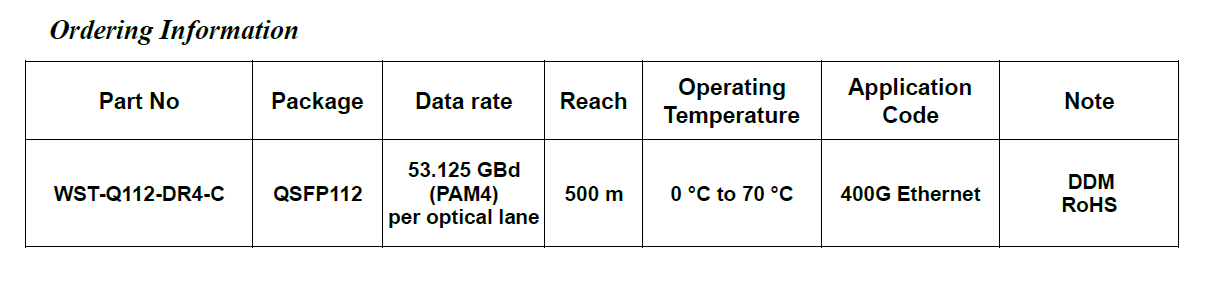

Specification
