Features
- QSFP-DD form factor
- 400 Gb/s aggregate data rate
- Electrical: 8 x 53.125 Gb/s PAM4
- Optical: 4 x 106.25 Gb/s PAM4
- 4-lane parallel EML and PIN photodiode receivers with TIAs
- MPO-12/APC optical connector
- DR4 (500 m) optical interface over single-mode fiber with host-side KP4 FEC
- Hot pluggable
- Single 3.3 V power supply
- Power consumption: Max. 9.5 W
- Operating case temperature: 0 °C to +70 °C
- Digital diagnostic monitoring support
Description
The WST-QD4-DR4-C module is a 400Gb/s QSFP-DD optical transceiver module designed for datacenter-reach singlemode fiber (SMF) transmission. It provides eight electrical lanes operating at 53.125 Gb/s PAM4 signaling and supports a DR4 optical interface for transmission distances up to 500 m over SMF.
The module integrates optical and electrical components within a QSFP-DD form factor and uses MPO-12/APC connector for optical connectivity. The transmitters are based on 1310 nm EML and the receivers use PIN photodiodes with TIAs, optimized for datacenter-reach SMF applications.

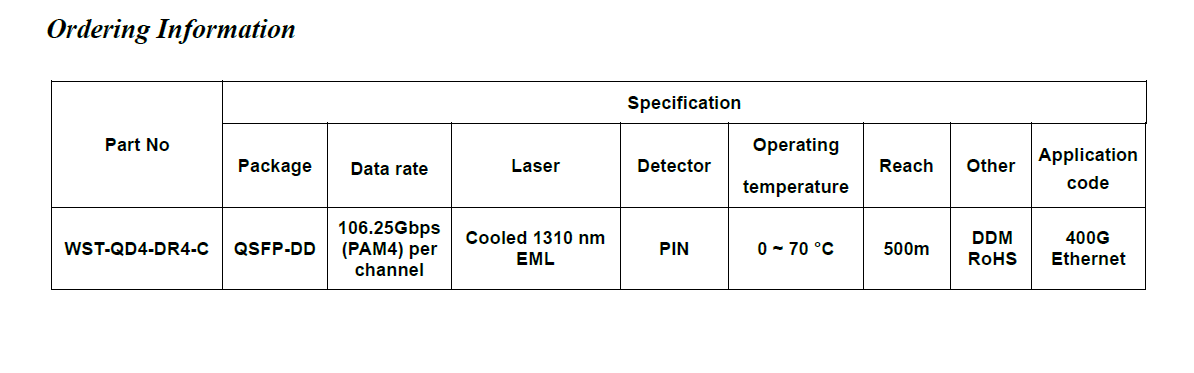

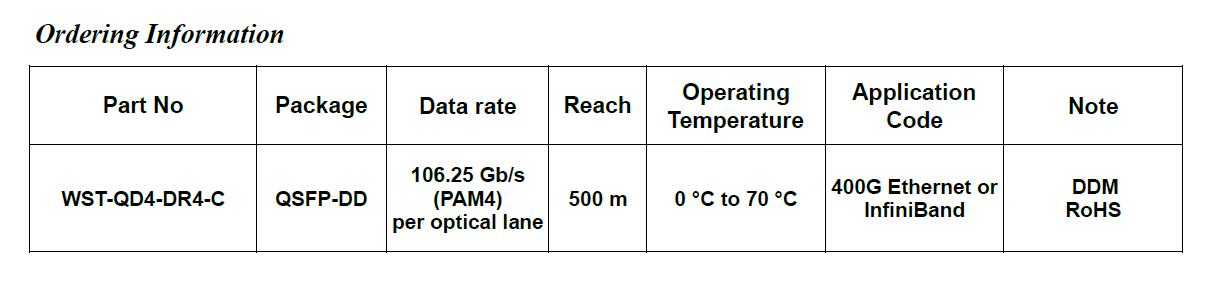

Specification
