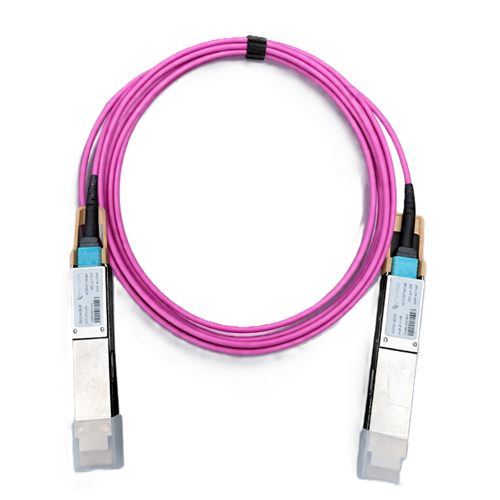

200G QSFP56 AOC

Features

Hot Pluggable QSFP Cable End
Supports 212.5Gb/s aggregate bit rate
Low Power Dissipation, Max. 4.0W Each End
4x50G PAM4 VCSEL/PIN photo detector
Operating Case Temperature: 0℃~70℃

Description

The series of AOCs are active optical cables compliant with QSFP56 200G connectors. They are 200G hot pluggable cables that support Infiniband and Ethernet data transmission. The cables provide parallel interconnects—4-lane Tx and 4-lane Rx data, supporting distances within 100 meters. The AOCs are composed with two intergarted optical modules connecting by OM4 multimode fiber cables. This integrated optical module is with COB(chip on board) design using high speed VCSEL arrays for easier assembly process and volume production. It is compliant with SFF-8636 standard for QSFP56 form factors. The AOC prodcut removes the complicated optical fiber installation and lower the module cost by testing pass on connected modules only. They are designed to meet the requirements of high speed, high density, and low power consumption for applications in today's data centers.
