HDMI 4K@60Hz Audio Extractor & Embedder

Part # : WST-PCV001

Category : ,

Features
Description
Specification

Features

  • Capture video and audio from HDMI sources.
  • HDMI video resolution up to 4K@60Hz 4:4:4, HDR10.
  • Supports HDMI loop output for display device connections.
  • Capture resolutions up to 1080P at 60 frames per second through the USB port.
  • Compatible with multiple third-party applications, such as OBS, Potplayer, YouTube on Windows, QuickTime on Mac OS X, etc.
  • Supports microphone input and headphone output.
  • Powered via USB port, no external power supply required.
  • Low latency.

Description

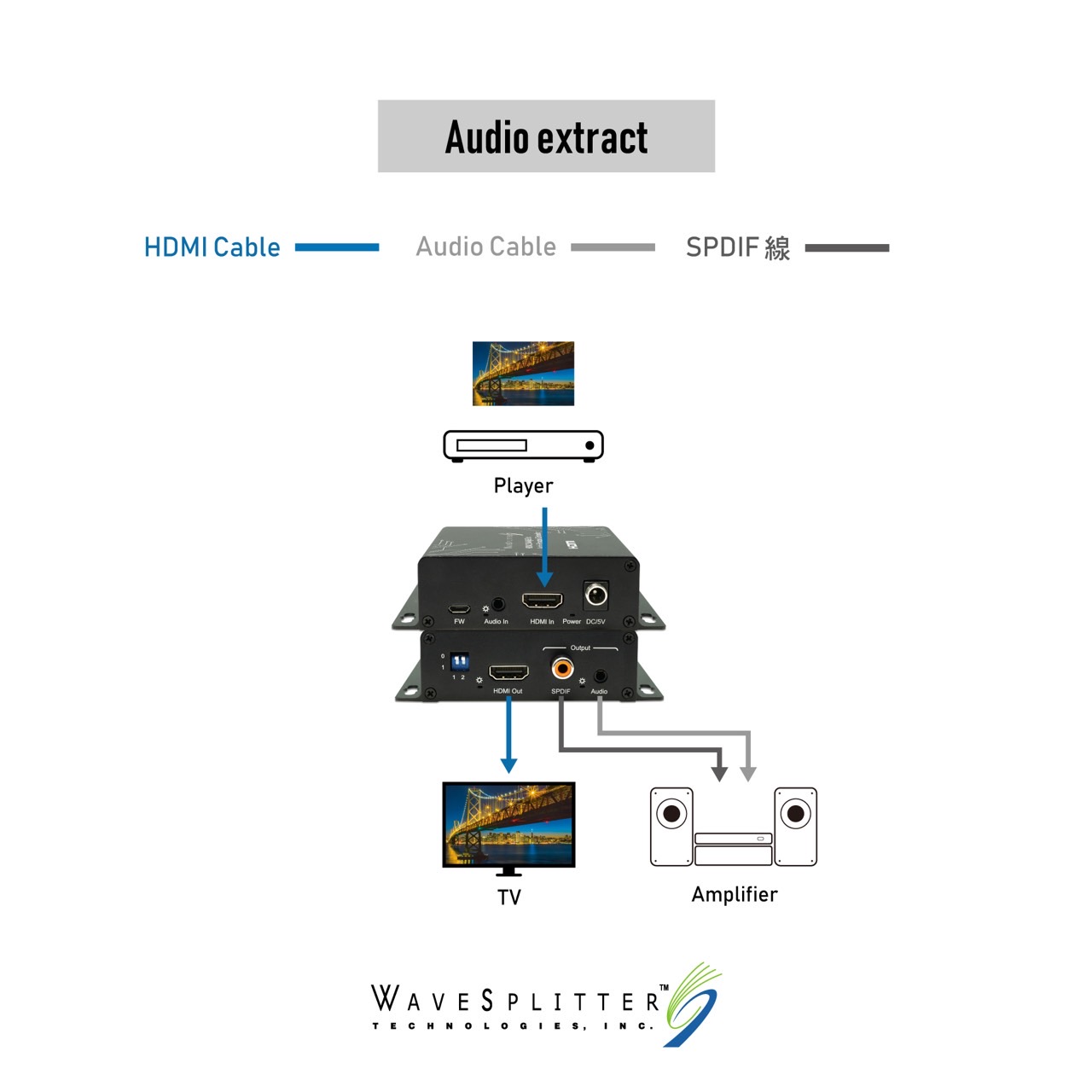

WST-PCV001 allows you to easily extract or embed audio and video signals. The device supports high resolutions up to 4K@60Hz. With the Dip Switch configuration, you can choose a suitable function based on the needs of different environments. WST-PCV001 is perfect for advertisement applications, home theater systems, and much more. Package Contents Audio extractor & embedder x 1 5V/1A Multi-Country Power Adapter x 1

Specification

Interface
Inputs:HDMI Type-A (Female) x 1
3.5mm (Female) x 1
USB Micro-B (Female) x 1 (For firmware update)
Outputs:HDMI Type-A (Female) x 1
SPDIF (Female) x 1
3.5mm (Female) x 1

Transmission
HDMI Compliant:HDMI 2.0
HDCP Compliant:2.2 / 1.4
Output Resolution:
4096×2160@60Hz
3840×2160@60Hz
1920×1200@60Hz
1920x1080P@60Hz

Power
Power supply:5V/1A DC (Locking)
Max. Power Consumption:1.5W

Product Structure
Main Material:Iron
Size W x D x H:104.4 x 89 x 28.3mm
Weight:155g

Environment
Operating Temperature:-5˚C~40˚C
Storage Temperature:-20˚C~60˚C

Certification
Safety & Emission:CE / FCC / RoHS / REACH

Country of Origin
China
